Product Center

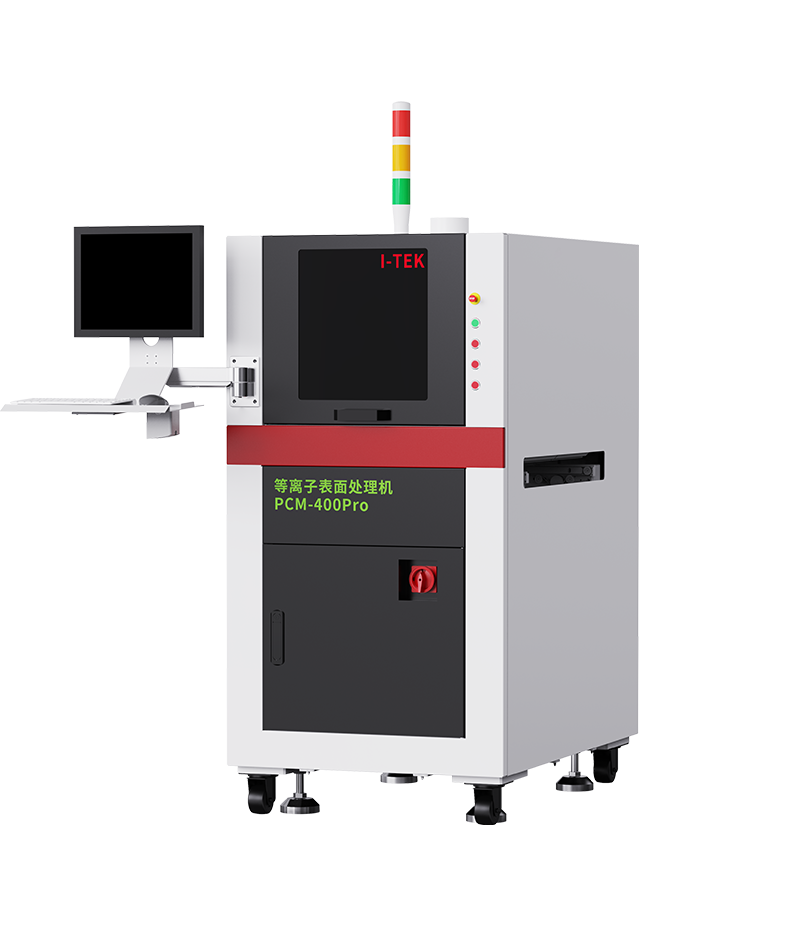

Plasma Surface Treatment Machine

Utilizing atmospheric plasma technology, this system enables rapid and deep cleaning of various surface contaminants while enhancing adhesion performance. Its high-efficiency cleaning capability not only boosts production efficiency but also ensures high-standard cleanliness, delivering superior product yield rates.


Product Introduction

Product Overview

Our plasma surface treatment machine features:

- Touchscreen operation & smart control technology – Supports customized cleaning programs for one-touch operation

- Intelligent design – Simplifies workflows and reduces human error

-Multi-level safety protection – Ensures stable operation with auto-diagnostic functions for risk-free personnel/equipment safety

- Advanced technology – Incorporates high-precision digital power supply and modular design (consumable-free), supporting green manufacturing initiatives

- Compact footprint – Easy to install/relocate, adaptable to various spatial requirements

- Low-maintenance design – Enables auto-diagnostics and rapid troubleshooting based on error alerts.

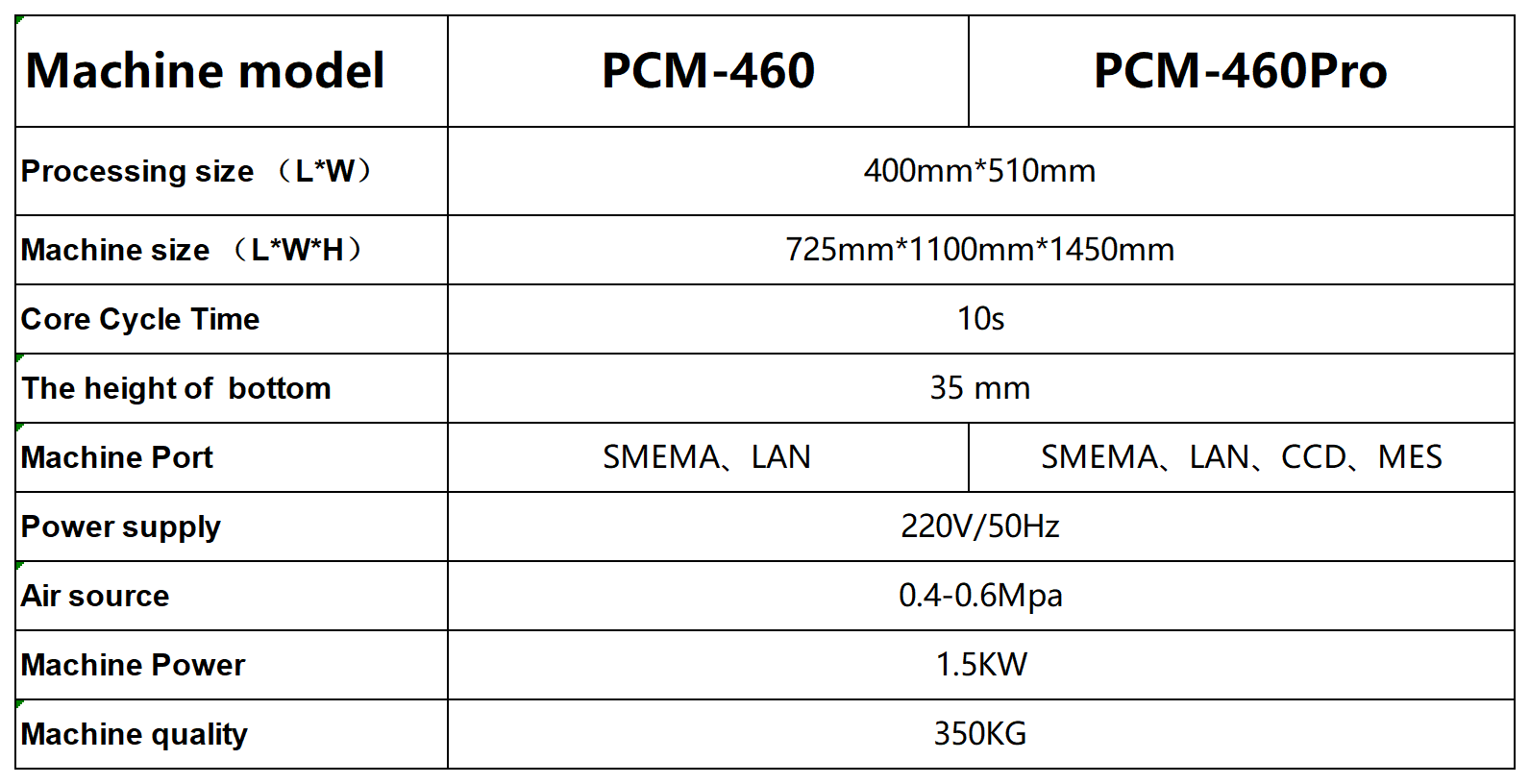

Machine model

PCM-460

PCM-460Pro

Processing size (L*W)

400mm*510mm

Machine size (L*W*H)

725mm*1100mm*1450mm

Core Cycle Time

10s

The height of  bottom

35 mm

Machine Port

SMEMA、LAN

SMEMA、LAN、CCD、MES

Power supply

220V/50Hz

Air source

0.4-0.6Mpa

Machine Power

1.5KW

Machine quality

350KG


Scope of application
